Safety technology

As the ideal complement to its premium solutions for cleaner air, LTA supplies safety concepts to satisfied customers worldwide.

From fire shutters and fire alarm control panels to complete fire extinguishers, LTA systems are already providing superb protection in over 3,000 machine tools. And we have the certification to back it up: the IBExU Institute for Safety Engineering has tested and approved the LTA systems.

Druckentlastungsklappe

Die LTA-Druckentlastungsklappe schützt das Maschinengehäuse vor Verformung, Verpuffung oder Brand durch erhöhten Innendruck. Bei einem definierten Überdruck in der Maschine öffnet sich die Druckentlastungsklappe. Es wird eine Öffnung freigegeben, der Überdruck kann entweichen. Nach dem Entweichen des Überdrucks schließt die Druckentlastungsklappe wieder selbständig. Dadurch wird die Luftzufuhr unterbrochen und der Brand in der Regel bereits bei der Entstehung erstickt. Gegensatz zu anderen Systemen lässt sich die Klappe beliebig oft verwenden. Der Öffnungsdruck kann exakt definiert werden und eine Überwachung der Klappenstellung ist problemlos möglich. Der Öffnungsdruck beträgt 20 mbar.

Erforderliche Parameter zur Dimensionierung der Druckentlastungsklappe:

  • Innenvolumen der Maschine
  • Maximal zulässiger Druck und maximaler Anteil an zündfähigem Gemisch im Maschineninnenraum
  • Mindest-Öffnungsdruck der Druckentlastungsklappe



Feuerlöschanlage

Löschanlagen dienen dazu, Brände in Maschinenhauben von Werkzeugmaschinen zu löschen. Die Auswahl des Löschmittels und die Auslegung der Löschanlage werden durch folgende Kriterien bestimmt:

  • Werkstoff
  • Kühlschmierstoff
  • Maschinenvolumen
  • Dichtigkeit der Maschinenhaube

Fire protection concept

In the metalworking industry, and particularly chip-forming operations, the use of large quantities of cooling lubricants is common. These are predominantly non water-miscible, modern oil types which have the propensity to form explosive mixtures with air. When heated to above their flash point, they form explosive vapor/air mixtures. Choosing cooling lubricants with the highest possible flash points helps to counter this effect. However, it is not possible to avoid the formation of aerosols through spray aeration or atomization. Aerosols are potentially explosive even below the flash point. When using oil/water emulsions (water-soluble cooling lubricants), only a water content of over 80 % can reliably prevent ignition.

There are a number of safety measures required in order to use non-water-soluble cooling lubricants in machine tools. LTA Lufttechnik has developed a special fire and explosion protection system, which has been appraised by an independent institute (IBEXU).

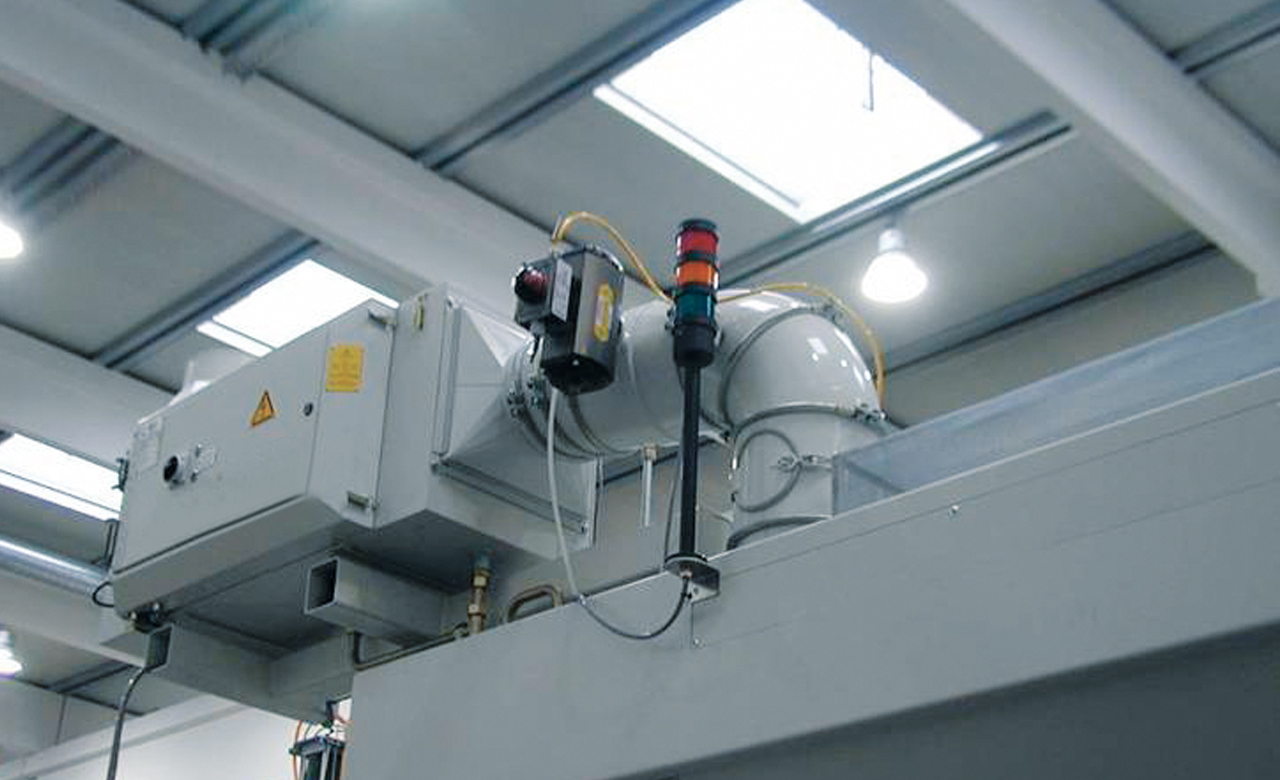

Fire shutter

The LTA fire shutter serves to interrupt the connection between suction plant and machine in case of fire or explosion. This prevents the fire from being fueled by the in-take of fresh air and prevents flames from transferring to the extraction unit and pipe systems.

Tube-housed fire shutter: The tube-housed fire shutter is used if there is no room in the machine to install the round version or if the pipe version is preferable for other reasons.

Fire protection control panel

The fire protection control panel serves as the control unit for the safety equipment on a machine tool and controls the sensors, limit switches, other signal generators and the fire extinguisher. The fire alarm control panel processes the input signals to create the relevant output signals such as fire alarms to the emergency services, optical displays, actuation of the fire shutter. Working in association with our partners, we will be pleased to offer you an individual fire extinguishing system concept.
